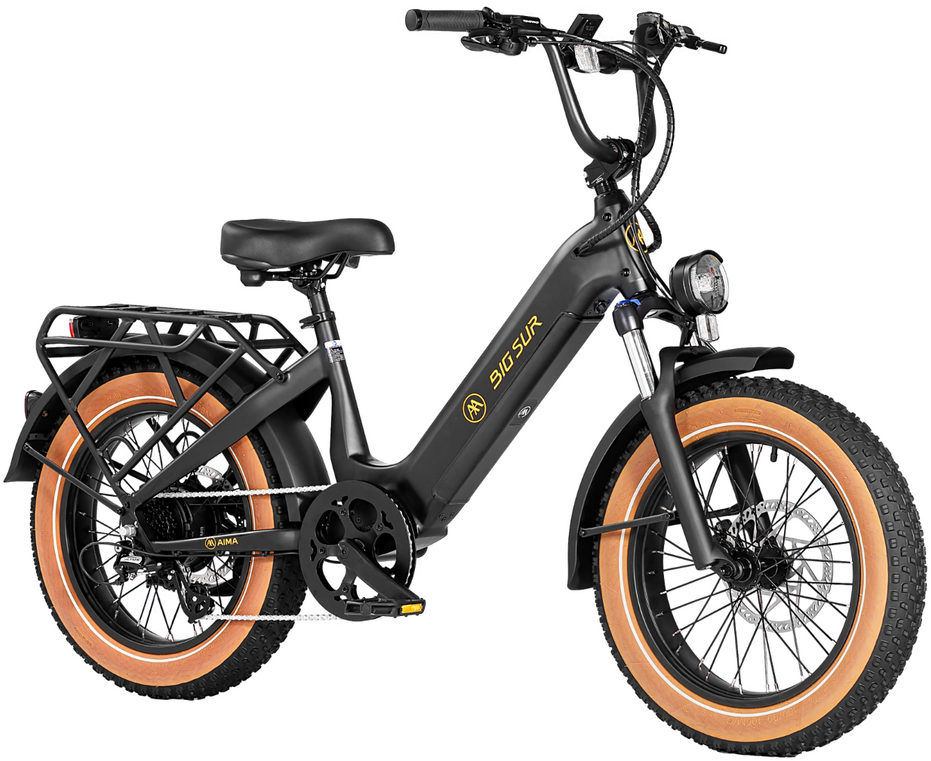

Aima BIG SUR SPORT 20 EBIKE BLACK - 2024

Aima Big Sur 20"- Electric Fat Bike
Tthe classic Aima Big Sur Electric bike at Bike Attack Playa Vista is featuring 20" x 4" fat tires, the Big Sur Sport is more compact and lighter while maintaining the same level of enjoyment and performance as the Big Sur 26", if not surpassing it! This e-bicycle preserves the original's class 2/3 rating (achieving top speeds of 20mph and 28mph using the throttle and PAS, respectively) and upholds its safety features, such as substantial 203mm brake rotors, LG 21700 battery cells, and complete UL2849 certification. With the AIMA Comfort XL seat and an MIK rear rack as standard additions, the Big Sur Sport ensures an equal caliber of power, comfort, speed and smooth operation as its larger counterpart.







MODEL



Big Sur Sport



MOTOR



750W (Rated), 48V Brushless Rear Hub Motor



THROTTLE



Throttle on Demand



DISPLAY



Color LCD, Smart Easy-to-Read Display with Backlight



SPEED



Up to 28 MPH Pedal Assist, 20 MPH Throttle Only



BATTERY



Removable Internal Lithium-ion 48V, 15Ah (720Wh) with LG M50LT 21700 cells



REAR RACK



MIK HD



SENSORS



Torque Sensor



PEDAL ASSIST



5 Levels



CHARGER



48V 3 Amp Fast Charger, about 5 Hours to a Full Charge



RANGE



Up to 60 Miles



FRAME



6061 Single-Butted Aluminum Alloy Frame with Internal Battery



WEIGHT



74 lbs. (Battery included)



PEDALS



9/16' Alloy Platform



FORK



Suspension Fork with 80mm Travel, Adjustable Preload & Lockout



WEIGHT LIMIT



400 lbs.



KICKSTAND



Included, Aluminum Alloy Kickstand



CRANKSET



160mm w/ 52T



SHIFT



Shimano 7 Speed



BRAKES



Tektro E350 Hydraulic Disc Brakes



ROTOR



203 mm



CHAIN



130 Link, 8 Speed



RIM



Double Wall Aluminum Alloy



SPOKES



Black Stainless 12G Front / 12G Rear



TUBES



Butyl Rubber



HUBS



Front Aluminum Alloy Disc Hub



TIRES



20" x 4" Puncture Resistant



SADDLE



AIMA Comfort, 280mm*270mm Saddle



SEATPOST



Aluminum Alloy, 30.4mm 2-Bolt Clamp



STEM



Threadless, 31.8mm, 7 Degree Rise, Ext 75mm



SEAT CLAMP



34.9 mm Quick Release



HANDLEBARS



Aluminum Alloy Double Wall, 31.8mm, 680mm



HEADSET



Sealed Bearing Headset



GRIPS



Ergonomic Comfort
